Practical Introduction To Portable Axle Scale

Portable axle scales have become indispensable tools in modern logistics transportation, highway over-limit control, and industrial weighing systems. Combining cutting-edge technology, robust construction, and smart services, these devices are specifically engineered for users requiring efficient, precise, and flexible weighing solutions. Whether used by traffic enforcement agencies for real-time monitoring or by logistics companies for on-site cargo verification, they deliver exceptional performance to enhance operational efficiency and ensure regulatory compliance. Their lightweight and user-friendly design makes them ideal for field operations and temporary weighing stations.

Outstanding Performance: Precision Measurement & Environmental Adaptability

The portable axle scale utilizes high-precision sensors and digital filtering technology, supporting both dynamic and static weighing modes with an accuracy error of less than ±0.5%. It ensures reliable data even when vehicles pass at high speeds. The product design emphasizes environmental adaptability: the alloy housing is waterproof, corrosion-resistant, and impact-resistant, operating within a temperature range of-30℃ to 70℃. The sensor employs an embedded design for precise and stable performance. Data transmission options include wired, wireless, and dual-mode (selectable during purchase based on user needs), featuring touch-screen input and wireless mouse operation for simplicity. The dual-mode system delivers stable performance with high-performance waterproof, anti-vibration, and corrosion-resistant features. Its dual-channel design incorporates high-precision integrated sensors for superior detection accuracy and low failure rates. The statistical analysis software facilitates data recording, statistics, and queries. The database provides vehicle model information, regulatory policies, and technical support. Additionally, the low-power design and rechargeable battery enable continuous operation for over 48 hours, meeting the demands of extended outdoor work.

Smart and Convenient: Technology Integration with User-Friendly Operation.

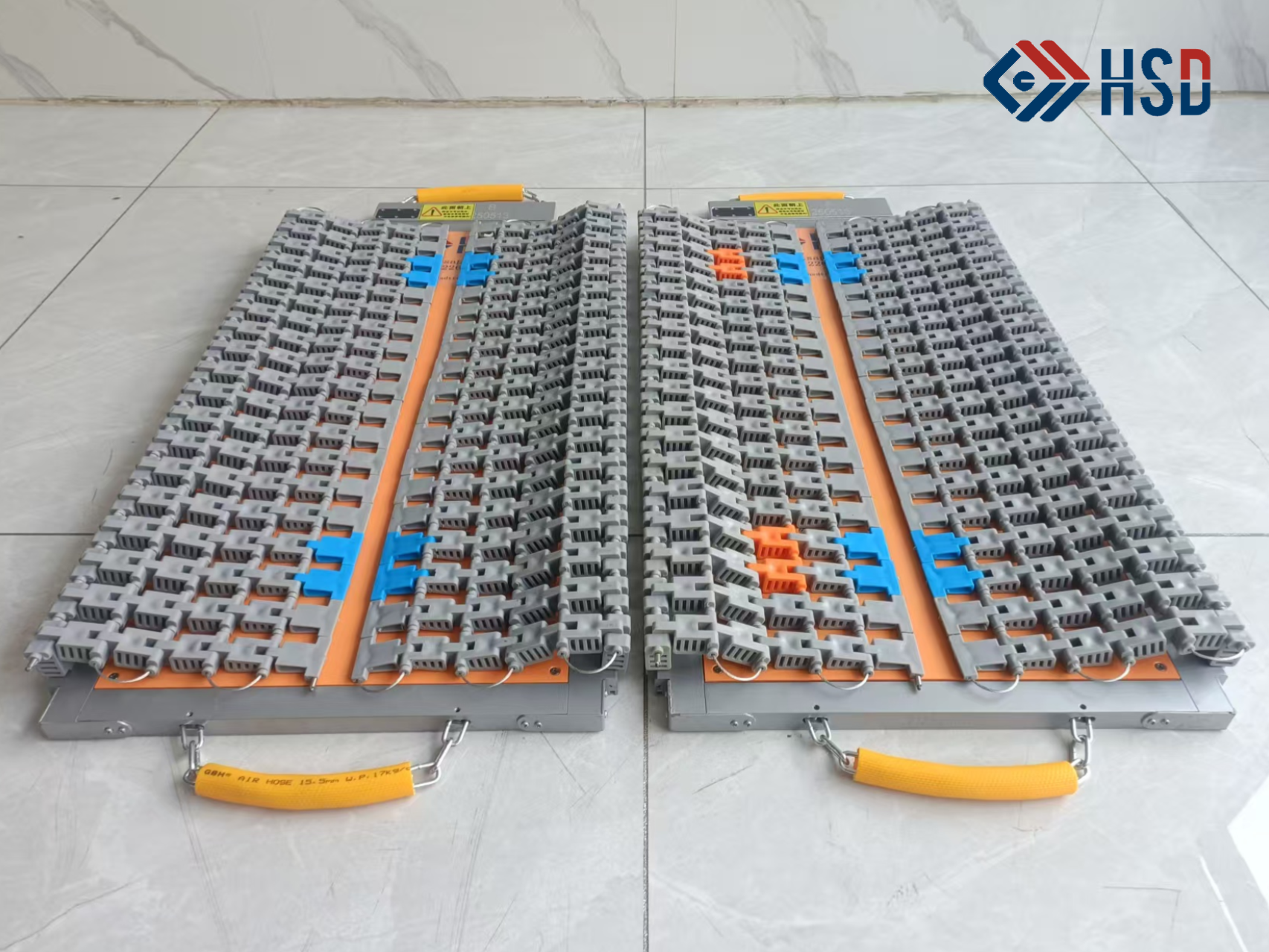

This product combines intelligent functions to significantly enhance user experience. Equipped with built-in Bluetooth and Wi-Fi modules, it enables real-time connectivity to computers, smartphones, or printers. Through multilingual software interfaces, users can monitor, store, and analyze data while effortlessly generating statistical reports, compliance check results, or weighing documents. Its portability stands out as a key advantage: Each panel weighs only 30 kg, requiring no installation base and ready for immediate use upon deployment. Designed for single-person operation, it can be easily set up at temporary checkpoints or in space-constrained warehouses, allowing users to start working immediately.

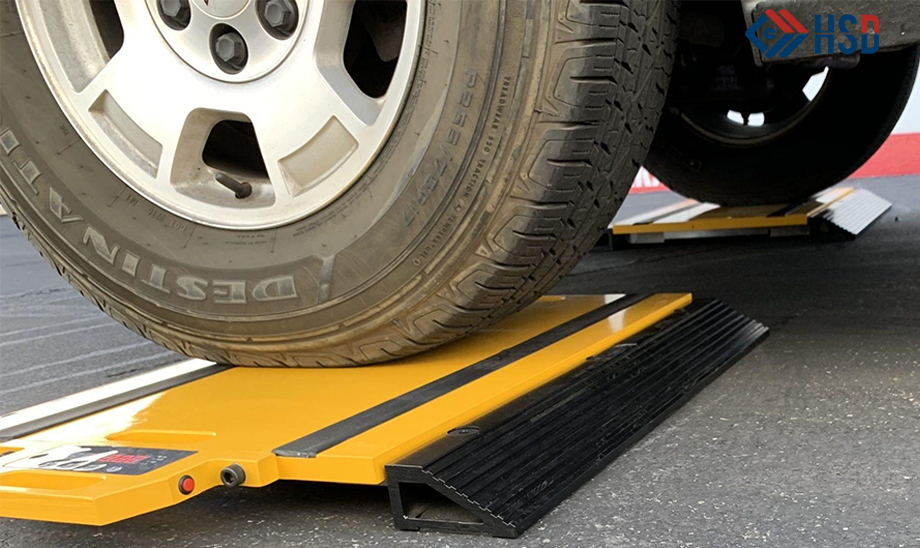

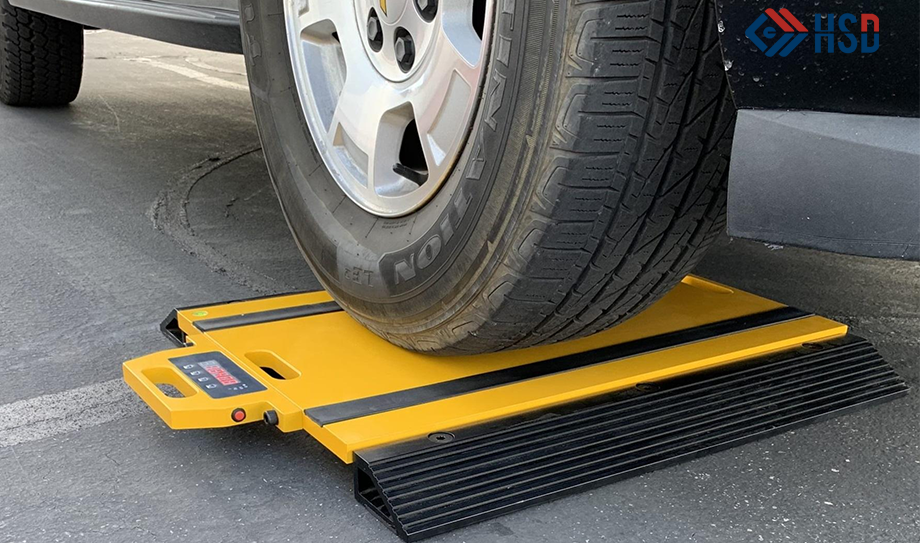

When using the testing site, select a level surface. The vehicle to be inspected must be aligned with its driving direction and positioned at least 20 meters away from the load-bearing plate to ensure all wheels pass through the sensor center at a uniform speed. The closer the upper surface of the load-bearing plate is to the road level, the higher the measurement accuracy (ideally flush with the road surface). Therefore, avoid placing additional objects under the load-bearing plate during regular use to prevent height variations that could affect precision. For long-term fixed installations in suitable environments, construct a shallow foundation pit equivalent to the load-bearing plate's depth and position it on the ground. The upper surface of the load-bearing plate should be slightly elevated by 5 millimeters above the road level.

The product is characterized by high design positioning, high precision, stable performance, reliable use, environmental protection and energy saving, low failure rate and simple maintenance. It can conveniently measure the dynamic and static quality of vehicle axle load and total vehicle cargo.
