Accurate Truck Scale Selection Guide: Professional Solutions from Chinese Manufacturers

In the global fields of industrial logistics, mineral mining, and chemical storage, truck scales serve as core measuring equipment for trade settlement and production control. The accuracy of their selection directly determines operational efficiency and cost control. As a Chinese manufacturer deeply engaged in the truck scale export market, we fully understand that customers from different countries and industries have differentiated equipment needs, and the selection of every parameter is crucial. The following customized selection guide is designed to help global purchasers and engineers make optimal decisions

 Anchor Application Scenarios: From Environmental Adaptation to Functional Requirements

The stable operation of truck scales starts with accurate matching of application scenarios, which is our primary principle for providing customized solutions to global customers.

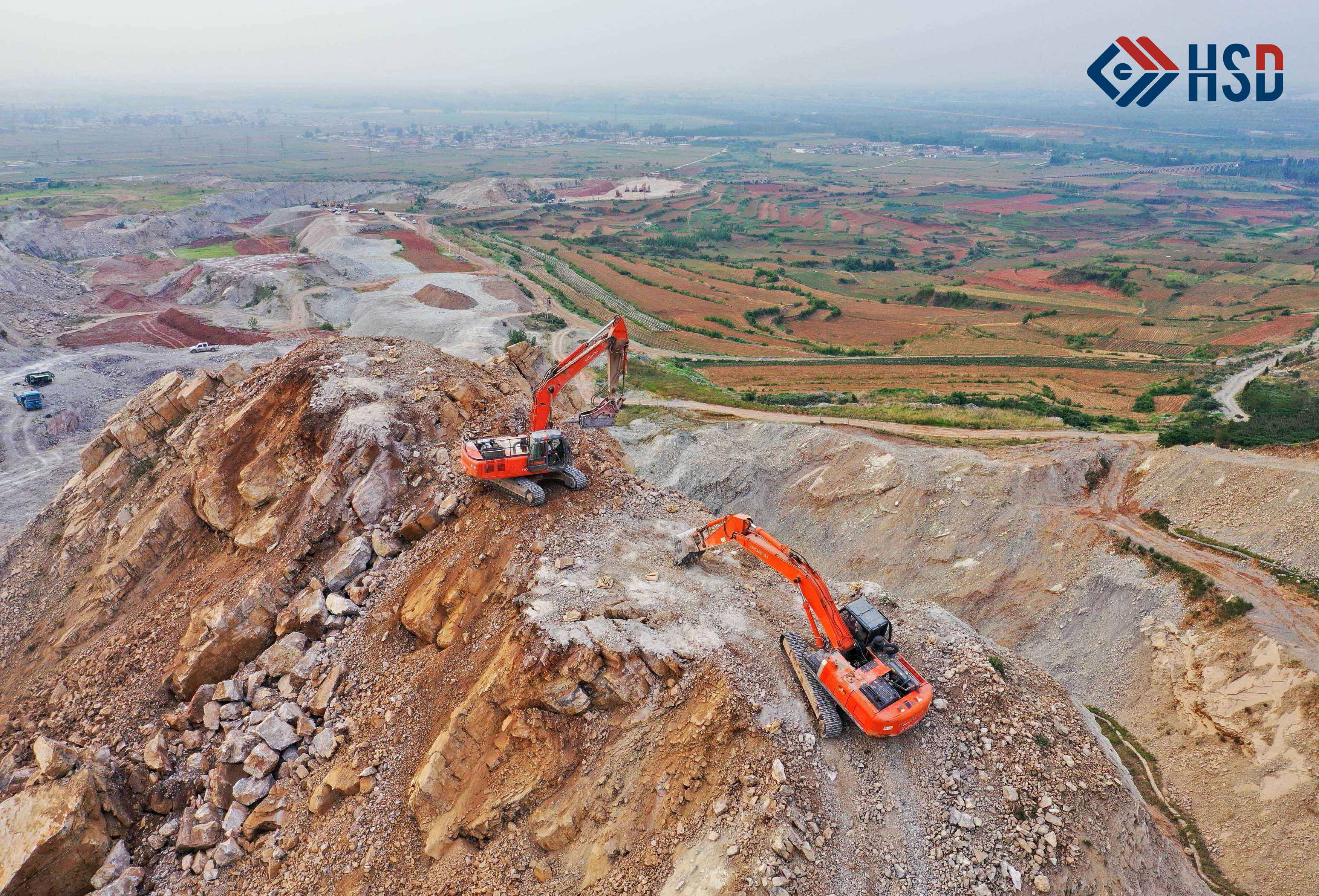

1. Adaptation to Extreme Environments: For corrosive scenarios such as chemical and food processing, as well as high-humidity and salt-spray environments in coastal areas, truck scales with bodies and sensors made of full 304 stainless steel are preferred. For dusty areas like mines and construction sites, sealed digital sensors with IP68 protection level can be used to effectively resist particle intrusion. For explosion-proof scenarios, our explosion-proof truck scales have passed international authoritative certifications and can be directly applied in hazardous areas.

 2.Matching Functional Requirements: A clear distinction must be made between static weighing and dynamic weighing. The standard SCS series can meet the static weighing needs of ordinary freight yards. For scenarios such as continuous weighing beside production lines or unattended logistics parks, it is necessary to configure high-response digital sensors and integrate intelligent modules such as license plate recognition, infrared grating positioning, and barrier linkage. This realizes the whole-process automation from vehicle entry to data upload,  greatly improving efficiency.

Consolidate Safety Bottom Line: Structural Guarantee

As heavy-duty equipment, the safety and compliance of truck scales are the core thresholds for entering the international market, and also the bottom line of our production and manufacturing.

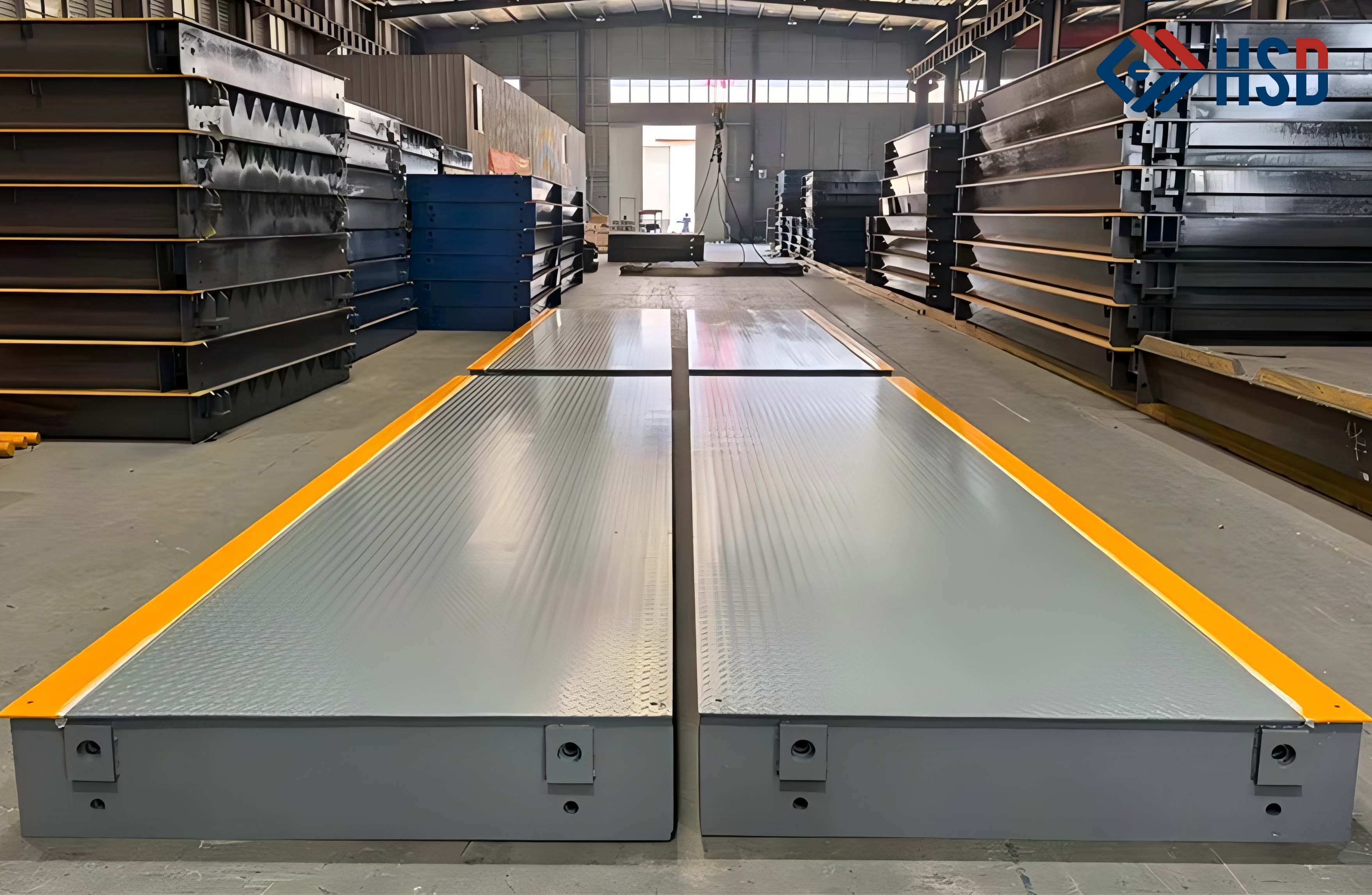

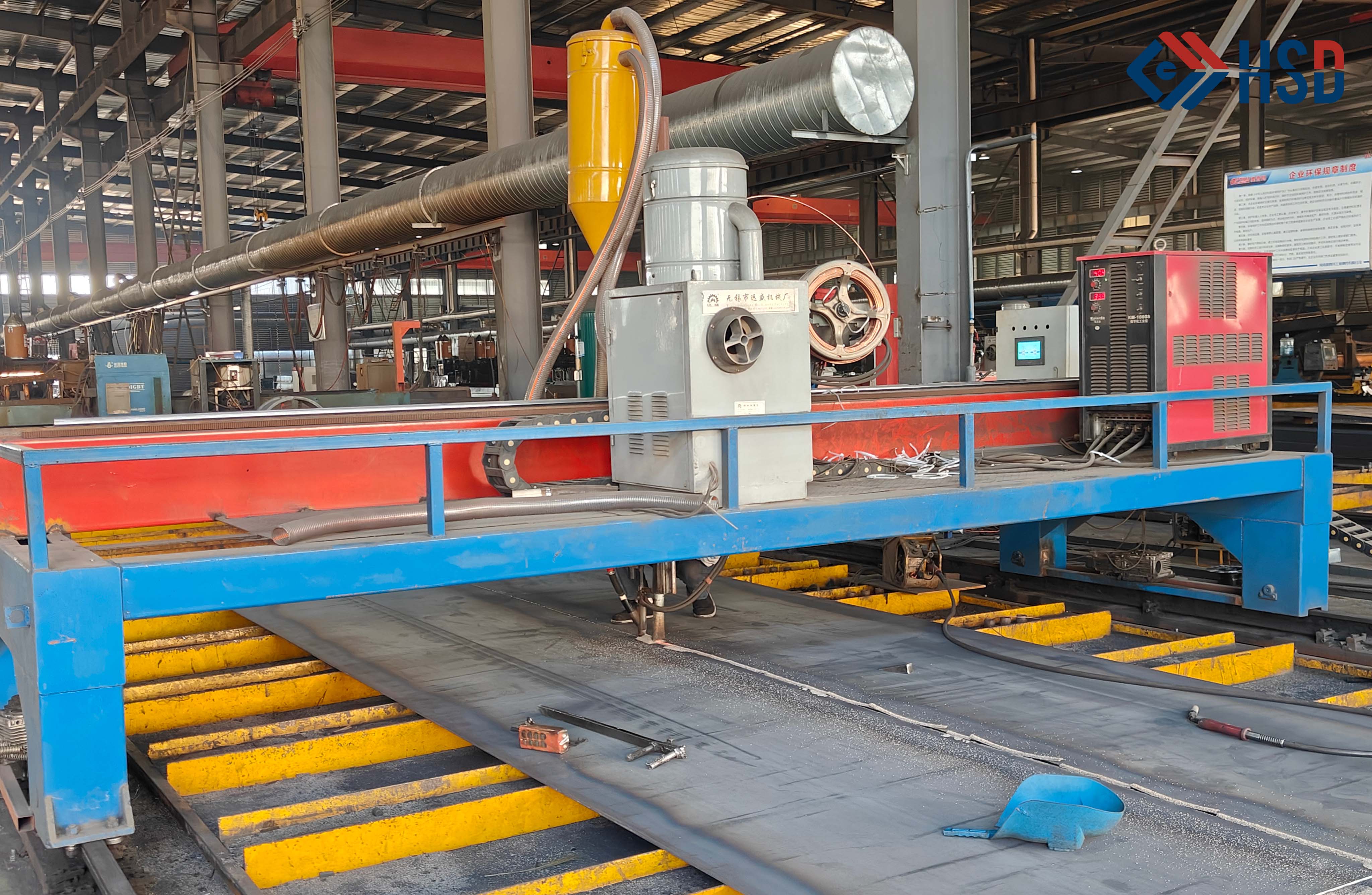

 Strengthened Structural Safety Design: To address the overload and impact resistance issues concerned by global customers, our truck scales adopt an integral welded U-beam structure, welded by factory workers. The load-bearing redundancy of the scale body reaches 1.5 times the design value, which can resist fatigue damage caused by frequent rolling of heavy-duty vehicles. At the same time, the scale body can effectively prevent displacement when installed in earthquake-prone areas or on ramps.

Accurately Calculate Core Parameters: Scientific Matching of Range and Accuracy

To avoid the double waste of "excessive accuracy" and "insufficient range", core parameters must be calculated scientifically based on actual working conditions, which is a key link for us to control costs for customers.

Range Calculation Formula and Safety Factor: The range of the truck scale must cover the maximum gross weight of daily weighing vehicles and reserve a reasonable safety margin. The calculation formula is as follows:

Maximum daily weighing gross weight (including vehicle weight): M

Peak impact coefficient (1.3 for heavy-load/mine scenarios, 1.2 for general logistics): K

Recommended truck scale range ≥ M × K

For example, a logistics park with 100-ton trucks passing through daily can meet the demand with a 120-ton truck scale, and there is no need to blindly pursue a 150-ton range, which would increase costs. Our engineers can accurately match the optimal range based on the vehicle data provided by customers.

Selection Closed Loop: From Scheme Customization to On-Site Verification

The final step of accurate selection is to establish a closed-loop process of "demand communication - scheme customization - on-site testing". We will assign an exclusive project manager to each customer to deeply understand their industry, local regulations and site conditions, and output a complete scheme including basic construction drawings, equipment parameter tables and compliance certificates. Before the equipment leaves the factory, simulated working condition tests can be carried out according to customer requirements, and third-party metrological testing reports can be provided. For customers with bulk purchases, engineers can be arranged to conduct on-site installation, commissioning and operator training to ensure stable operation once the equipment is put into use.

From Chinese factories to production sites around the world, HSD truck scales have always focused on "accurate measurement, stability and durability", providing adaptive solutions for customers in more than 50 countries. To obtain exclusive selection suggestions, please feel free to contact our international sales team. Let Chinese intelligent manufacturing empower your efficient operation.
