Unattended Weighbridge

• The vehicle has automatic voice command function from weighing to the end of weighing and unloading. The system automatically processes and stores the data to realize unattended automatic weighing;

• Complete security protection, set different operation permissions for each operation user, to ensure the reliable operation of the software;

• Provide flexible bill of lading and report success function, print the bill of lading you want at any time;

• A variety of data query methods are convenient, fast and effective;

• It has the function of camera, when querying the historical weighing records, the on-site pictures can be called up at the same time, and there are two sets of pictures for gross weight and skin weight for comparison, to ensure the accuracy, reliability, transparency and fairness of the weighing process;

• Infrared light grating, traffic lights, barrier machines, license plate recognition cameras and other equipment are configured to effectively prevent accidents and ensure the normal operation of weighing;

• Support manual control of barrier gate machine to ensure normal manual operation in case of PLC failure;

• Two-way weighing, automatic license plate recognition system.

• As far as possible, the data collection adopts the system automatic collection mode to reduce human intervention and improve the accuracy and real-time of data collection;

• Standardize the weighing process, block loopholes, and more effectively avoid the occurrence of cheating;

• Personnel permission control, the weighing software has strict permission control function, operators to prevent over permission operation;

• Weighing data can be automatically collected, manual input and copy-paste can not be used to prevent human intervention. Weighing data is convenient for query and statistics, and the computer network can greatly help remote service and equipment control;

• Printing technology, control the number of print orders, make up the printing order through leadership permission and make up the mark. Support multi-sheet printing, powerful function;

• Speed up the weighing speed and improve the production efficiency;

• Managers work remotely in the office, realizing an unattended weighing platform;

• Support information pre-storage function, can prefabricate the common goods name, receipt and delivery unit and other information in advance, when calling directly select, greatly improve work efficiency;

• The relevant personnel of the company can understand the weighing situation and details at any time through the LAN, and the relevant departments with authority can query the weighing records and other related content at any time, and make statistics and print reports after screening according to conditions.

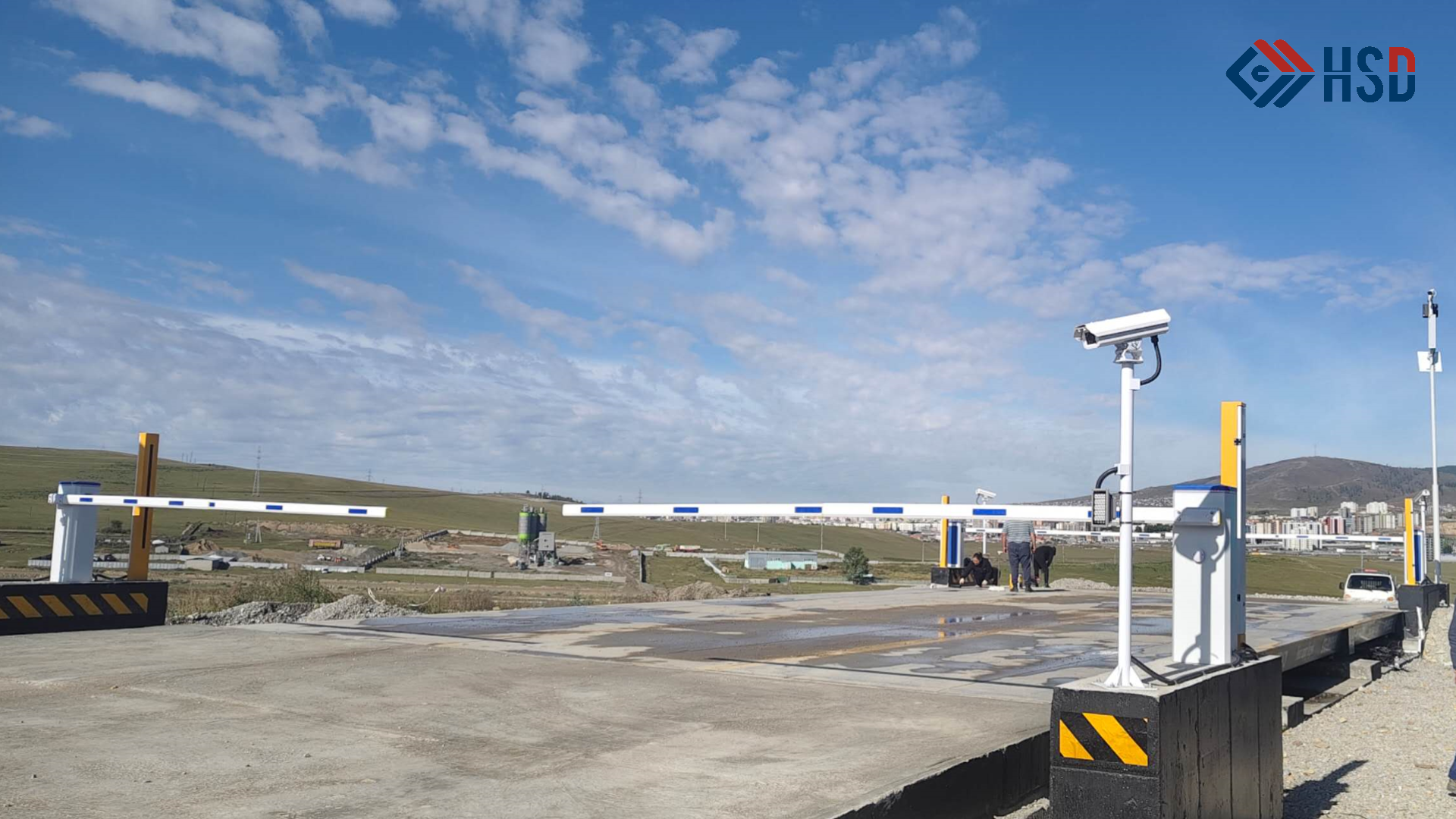

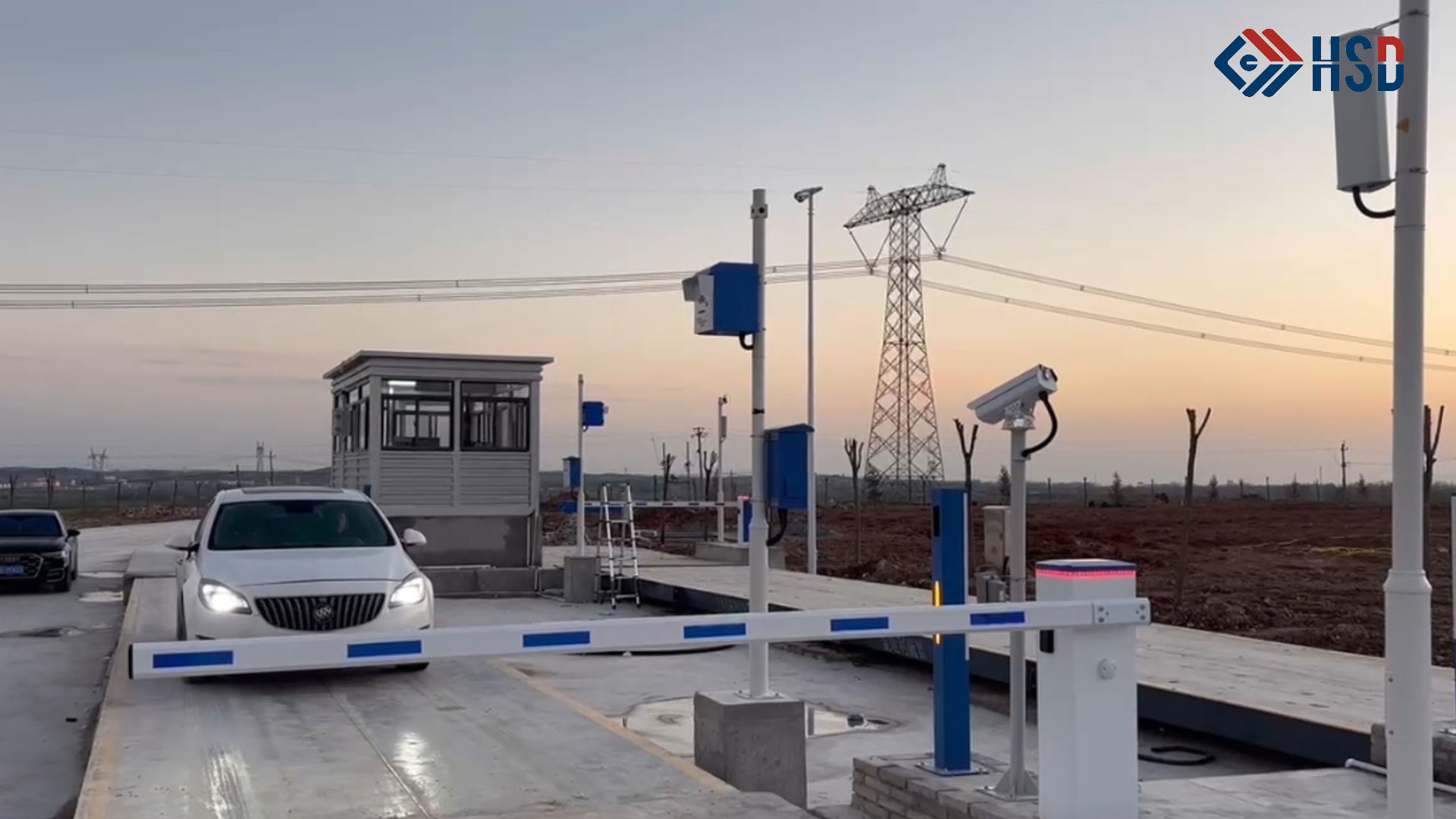

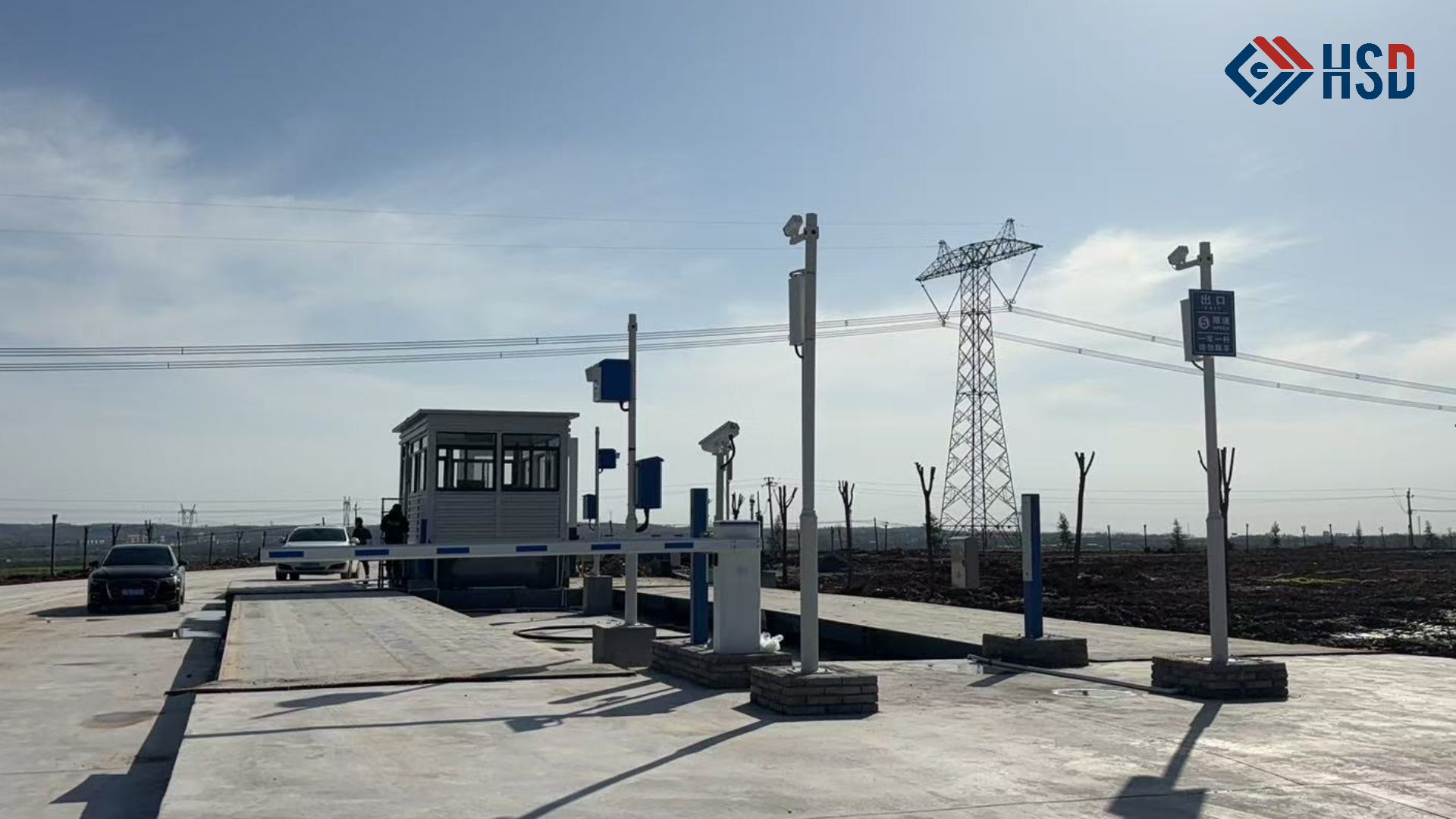

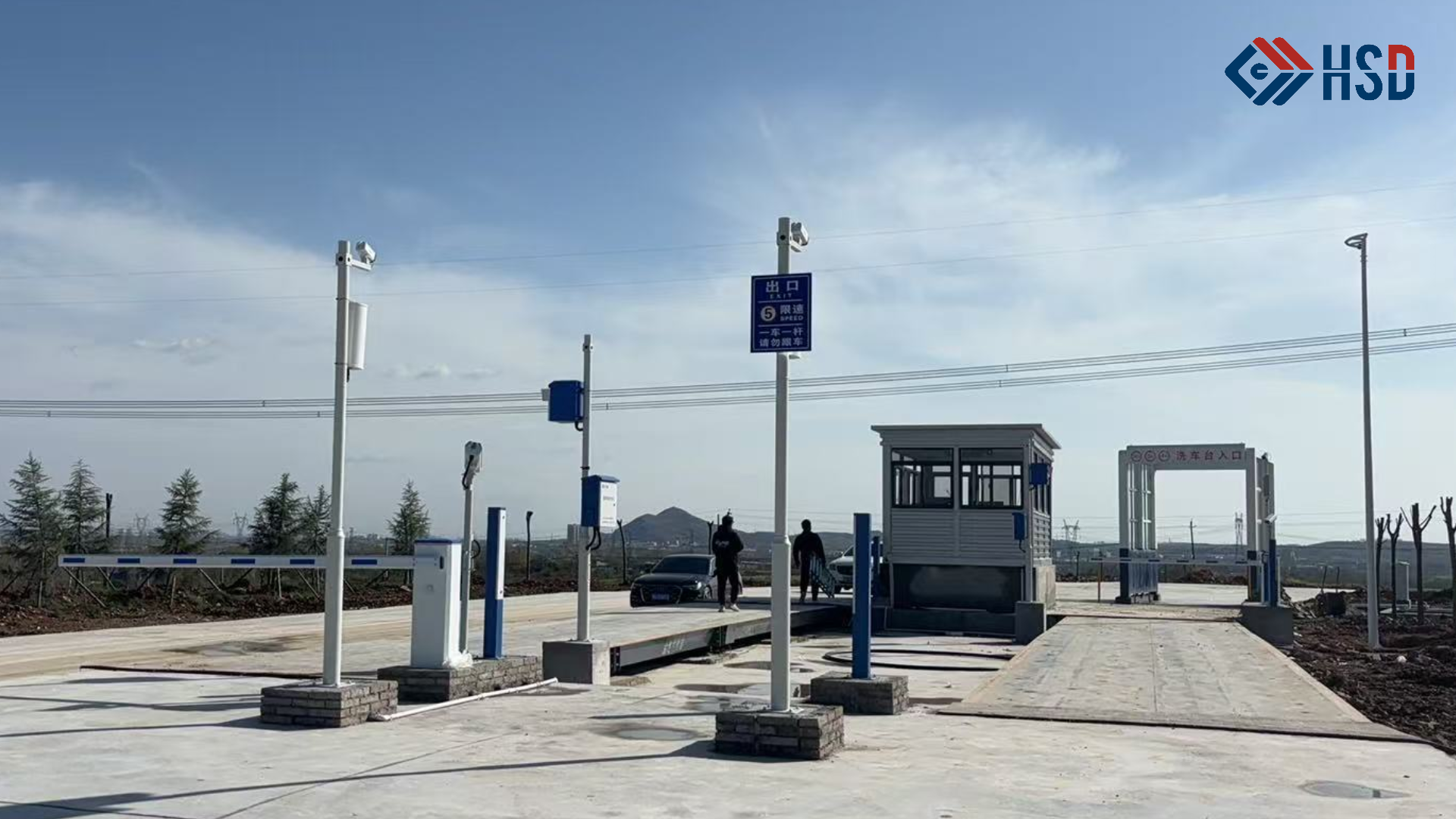

The unmanned weighbridge system achieves full automation through intelligent technology. The process begins when vehicles enter the facility, where drivers access task information via self-service terminals using IC cards or QR codes. Subsequently, the system automatically captures and verifies license plate numbers through license plate recognition cameras, after which the barrier gate lifts to allow passage.

The vehicle drives on the scale at a uniform speed. After the infrared beam system ensures that it is completely stopped and there are no violations such as edge pressure, the weight data is automatically collected and locked. At the same time, the high-definition camera simultaneously captures the panoramic view of the vehicle and the photos of the goods to retain evidence.

After completing the weighing, the driver drives away from the scale as the barrier gate lowers. Real-time data is uploaded to a cloud-based management platform, automatically matching and verifying with procurement and sales orders to generate tamper-proof electronic weighbridge receipts. This fully automated process eliminates human intervention, significantly improving weighing efficiency and accuracy while effectively preventing cheating loopholes. The system achieves digitalization and transparency in weighing management, ensuring both efficiency and integrity.

To achieve intelligent management of vehicle scales, reduce staff workload, improve operational efficiency, prevent human-induced weighing fraud, and provide customers with a comfortable, safe, and efficient working environment, we recommend the Intelligent Vehicle Scale Weighing System (Unattended System). This system utilizes advanced monitoring, detection, and control technologies to ensure reliable operations while maintaining operational efficiency.

This system adopts the current cutting-edge mobile vehicle identification technology, advanced weighing management methods, the operation of the weighing process basically does not need human intervention, so as to minimize the loss of goods for the shipper, maximize the balance of the interests of both sides, and improve the service level of the weighing operation.

This system is an intelligent weighing system that uses camera recognition equipment to identify the weighing vehicles and is equipped with video monitoring system, so as to cooperate with the computer to automatically complete the weighing and release process, which can standardize the weighing process and improve the operation efficiency.
