HSD Weighing Modules

A weighing module is a device component used to measure the weight of an object. It is usually composed of sensors, elastic elements, and signal processing circuits.

The working principle of a weighing module is to use a sensor to convert the weight of an object into an electrical signal, and then amplify, filter, and convert the electrical signal into analog-to-digital signals through a signal processing circuit, and finally display the weight data or transmit it to other devices for further processing and analysis.

The weighing module has the characteristics of high precision, high stability, and fast response, and is widely used in industrial automation, logistics warehousing, transportation, food processing and other fields.

The weighing module is a very important measuring device that can help people accurately measure the weight of objects and provide an important basis for management and decision-making in production, logistics, transportation and other fields.

Column weighing module:

The shape is similar to a column, easy to install, and suitable for weighing various hoppers, silos and other equipment.

Cantilever weighing module:

One end is fixed and the other end is cantilevered. It can withstand large lateral forces and is often used in platform scales, etc.

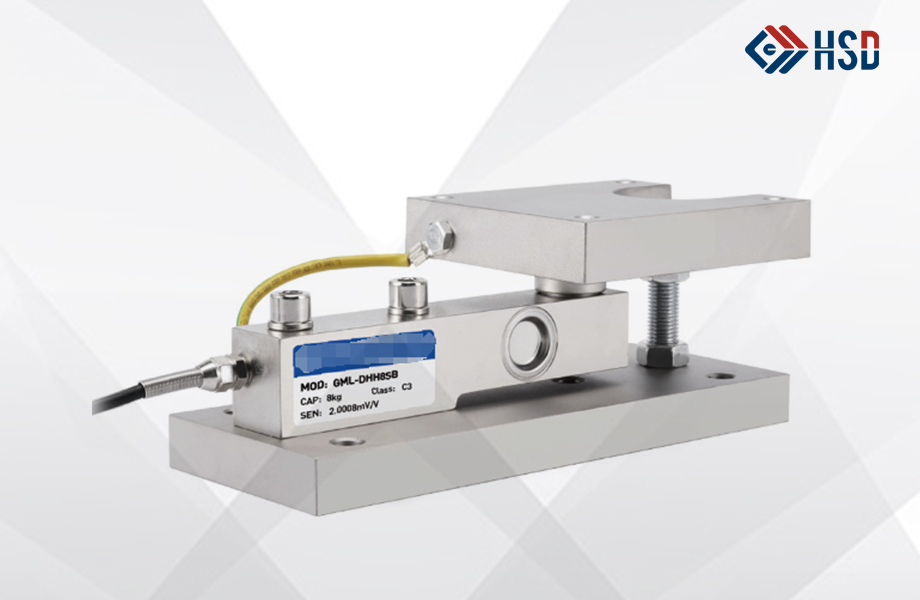

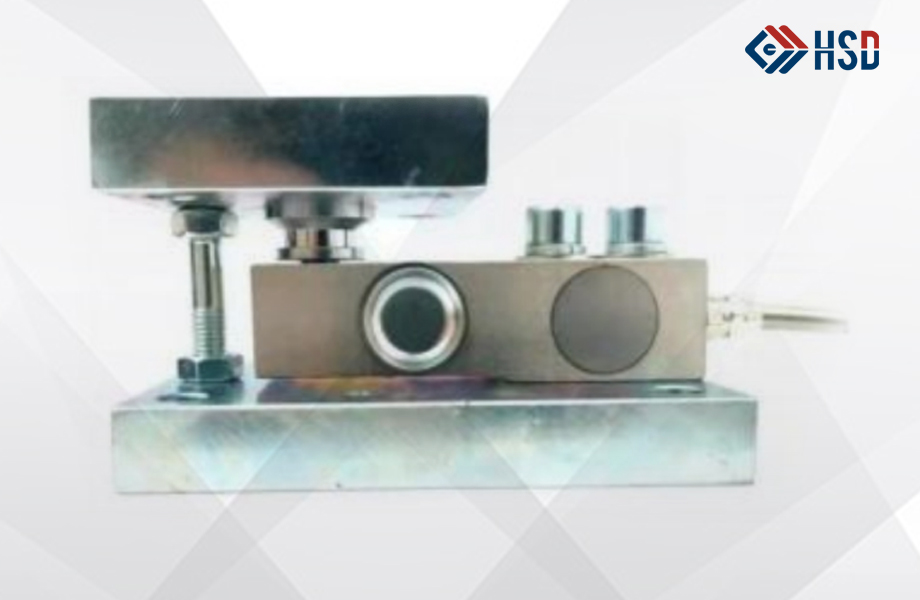

Shear beam weighing module:

It uses the shear deformation of the beam to measure weight. It has the characteristics of high precision and good stability and is suitable for various high-precision weighing occasions.

Spoke weighing module:

It is similar to the spokes of a wheel and has a strong load-bearing capacity. It can be used for weighing large containers or equipment.

Plate weighing module:

The overall shape is flat and easy to install. It is suitable for some weighing occasions that do not require high space.

High-precision measurement:

It can accurately measure the weight of an object with small errors, meeting various high-precision weighing requirements.

Easy installation:

A variety of installation methods are available, which can be flexibly installed according to different application scenarios, saving installation time and cost.

Good stability:

It adopts advanced sensor technology and structural design, has good stability, and can maintain accurate weighing results in various complex environments.

Overload protection:

It usually has an overload protection function. When the weighed object exceeds the set overload value, it can automatically protect the weighing module from damage.

Strong integration:

It can be integrated with various control systems and display devices to facilitate data collection, transmission and processing, and facilitate automatic weighing and monitoring.

Wide range of application: It can be applied to a variety of industries and fields, such as industrial production, logistics warehousing, food processing, chemical industry, etc., to meet different weighing needs.

Here are some common application areas and analysis

Industrial field:

Production line weighing: On the production line, weighing modules can be used to monitor the weight of raw materials, semi-finished products or finished products in real time.

Warehousing and logistics: Used for weighing and measuring goods, such as weighing incoming and outgoing goods in the warehouse, which is convenient for inventory management and cost accounting. In logistics transportation, it can be installed on trucks to dynamically weigh goods to prevent overloading, avoid fines and safety accidents, and improve transportation efficiency and reasonably arrange vehicle cargo capacity.

Food industry:

Food processing: Weigh food raw materials to ensure the accuracy of ingredients, thereby ensuring the quality and taste consistency of food.

Food testing: used to detect whether the weight of food meets relevant regulations and standards. For example, some countries have regulations on the minimum weight of food, and the weighing module can help food companies to conduct testing to avoid violations.

Chemical industry:

Weighing of chemical raw materials: In chemical production, the weight measurement of various raw materials is crucial. The weighing module can be used to accurately measure the amount of raw materials added to ensure the accuracy and stability of chemical reactions.

Weighing of chemical storage tanks: For storage tanks storing liquid or powdered chemical raw materials, the weighing module can monitor the weight changes of materials in the storage tanks in real time, help enterprises grasp the consumption of materials, replenish raw materials in time, and avoid production interruptions.

Other fields:

Construction: used to weigh the weight of building materials, such as cement, sand, steel, etc., to ensure the accurate use of construction materials and control costs. In large-scale construction projects, it can also be used to monitor the weight distribution of buildings and evaluate the structural stability of buildings.

Laboratory: In some scientific research and laboratory tests, it is necessary to accurately measure the weight of the sample. The weighing module can provide high-precision weighing services to ensure the accuracy of experimental data.

In general, the weighing module provides important information and control means for various industries by accurately measuring weight, which helps to improve production efficiency, product quality, reduce costs and ensure safety. The key to its application is to select the appropriate type of weighing module according to the characteristics and needs of different industries, and integrate it with the corresponding control system to achieve the best application effect.
